AUTOMATIC STRAPPING MACHINE

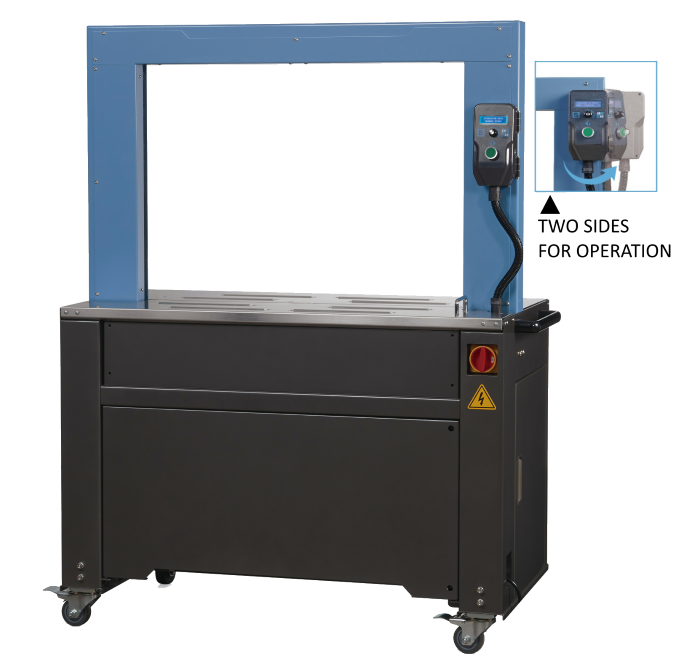

MODEL: EXS-138

MODEL: EXS-138

  • Speed: 28 strap per minute
  • Tension : 5-60KG
  • Strap width : 9, 12, 15mm

FEATURES

  • DISPENSER INSIDE CABINET
  • ELECTRONIC OUTSIDE TENSION CONTROL
  • LOOP EJECTION
  • 2ND STRAP REFEED
  • AUTO LAST STRAP EJECTION
  • SIMPLE MACHINE HEAD WITH NO ANY CLUTCH & NO BELT & NO CHAIN
  • JOG SWITCH FOR SERVICE AND MAINTENANCE

CAPACITY

  • POWER SUPPLY: 100/110/220/230/240V, 50Hz/60Hz, 1-Phase
  • POWER CONSUMPTION: 0.72kW
  • SPEED: 28 STRAPS/MIN
  • STRAP WIDTH: 9, 12, 15MM.
  • STRAP TENSION: 5-60 KG







Arch size

H/W (mm) 650 850 1050 1250 1450
500 V 　 　 　 　
600 　 S V V V
800 　 　 V 　 　
1000 　 V 　 　 　
MODEL: EXS-158-PLUS

MODEL: EXS-158-PLUS

  • Speed 37 strap per minute
  • Tension : 5-65KG
  • Strap width : 9, 12, 15mm
  • With high and complete features

FEATURES

  • DISPENSER INSIDE CABINET
  • EASY PANEL WITH ROTATION FUNCTION
  • HIGH SPEED 37 STRAPS/MIN
  • ELECTRONIC OUTSIDE TENSION CONTROL
  • TABLE SENSOR
  • AUTO STRAP THREADING
  • LOOP EJECTION
  • 2ND STRAP REFEED
  • AUTO LAST STRAP EJECTION
  • SIMPLE MACHINE HEAD WITH NO ANY CLUTCH & NO BELT & NO CHAIN
  • JOG SWITCH FOR SERVICE AND MAINTENANCE

CAPACITY

  • POWER SUPPLY: 100/110/220/230/240V, 50Hz/60Hz, 1-Phase
  • POWER CONSUMPTION: 0.60kW
  • SPEED: 37 STRAPS/MIN (SAME FOR 50/60Hz)
  • STRAP WIDTH: 9, 12, 15MM.
  • STRAP TENSION: 5-65 KG









arch size

H/W (mm)

650

850

1050

1250

1450

500

V

　

　

　

　

600

　

S

V

V

V

800

　

　

V

　

　

1000

　

V

　

　

　
MODEL: EXS-155-PLUS

MODEL: EXS-155-PLUS

  • Speed: 37 strap per minute
  • Tension : 5-40KG
  • Strap width : 5mm
  • With high and complete features

FEATURES

  • DISPENSER INSIDE CABINET
  • EASY PANEL WITH ROTATION FUNCTION
  • HIGH SPEED 37 STRAPS/MIN
  • ELECTRONIC OUTSIDE TENSION CONTROL
  • TABLE SENSOR
  • AUTO STRAP THREADING
  • LOOP EJECTION
  • 2nd STRAP REFEED
  • AUTO LAST STRAP EJECTION.
  • SIMPLE MACHINE HEAD WITH NO CLUTCH & NO BELT & NO CHAIN
  • JOG SWITCH FOR SERVICE AND MAINTENANCE

CAPACITY

  • POWER SUPPLY: 100/110/220/230/240V, 50Hz/60Hz, 1-Phase
  • POWER CONSUMPTION: 0.72kW
  • SPEED: 37 STRAPS/MIN (SAME FOR 50/60HZ)
  • STRAP WIDTH: 5MM.
  • STRAP TENSION: 5-40 KG










Arch Size

H/W (mm)

650

850

1050

1250

1450

500

V

　

　

　

　

600

　

S

V

V

V
